Managed Services Console 301 — Agents Tab

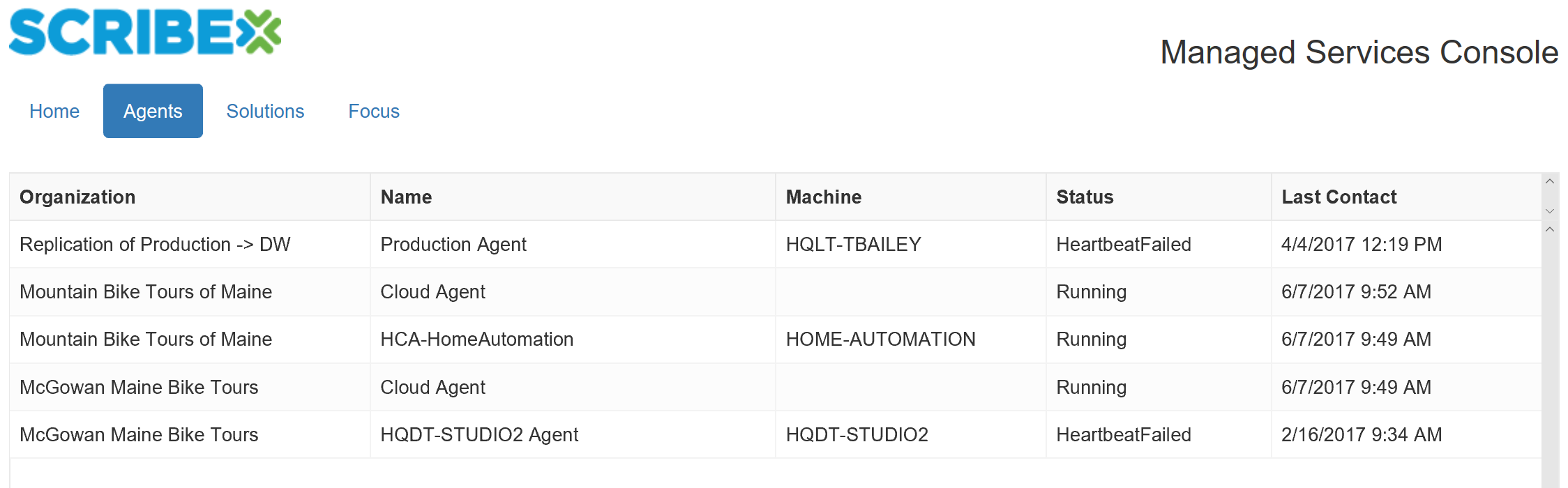

Use the Agents tab to see all Agents across all of the user's Organizations where the connecting IP address is included in the range of IP addresses with API access.

To configure API access see Setting Security Options in the TIBCO Scribe® Help.

Agent Tab Fields

Field

Definition

Organization

Name of the Organization where the Agent is hosted.

Name

Name of the Agent. Agent name can be modified in the TIBCO Scribe® UI. See Editing Agent Settings.

Machine

Name of the computer where the Agent is installed. For a Cloud Agent this field is empty.

Status

Status of the selected Agent. After the Agent has stared the first time it should run continuously. Statuses include:

  • AgentUpdatingTIBCO Scribe® is updating the Agent.
  • HeartbeatFailed — Agent failed to contact TIBCO Scribe® for 60 minutes or more. Agent service may not be running.
  • HeartbeatLate — Agent failed to contact TIBCO Scribe® for 15 to 59 minutes. Agent service may not be running.
  • Obsolete, install new Agent — Agent and installed Connectors cannot be automatically updated because the version of the installed Agent is too old. Install a new Agent manually and edit your Solutions to use that Agent.
  • Restarting — Agent is restarting.
  • Running — Agent is running normally.
  • Shutdown — Agent service has been shut down and has successfully contacted TIBCO Scribe® to communicate the shutdown.
  • ShutdownCloud — Cloud Agent has been shut down.
  • Unknown — Agent has not responded to TIBCO Scribe®.
  • UpdatingConnector — Agent is installing Connector updates.
  • WaitingToRestartAgentMemoryLimitTIBCO Scribe® detects when an Agent's memory limits are being exceeded and requests an Agent restart. Agent completes any running Solutions and updates Execution History for those Solutions before restarting.
  • WaitingToRestartAgentUserRequest — A user has requested an Agent restart. Depending on the type of restart selected by the user, the Agent restarts immediately or after all running Solutions are complete and Execution History has been updated. See Restarting An On-Premise Agent in the TIBCO Scribe® Help.
  • WaitingToUpdateAgent — Agent completes any Solution executions that are running and updates Execution History for running Solutions, but does not start any Solutions or contact TIBCO Scribe®. Agent then goes to UpdatingAgent status.
  • WaitingToUpdateConnector — Agent completes any Solution executions that are running and updates Execution History for running Solutions, but does not start any new Solutions or contact TIBCO Scribe®. Agent then goes to UpdatingConnector status.

Last Contact

Date and time the Agent last contacted TIBCO Scribe®.



See
