Managed Services Console 301 — Focus Tab

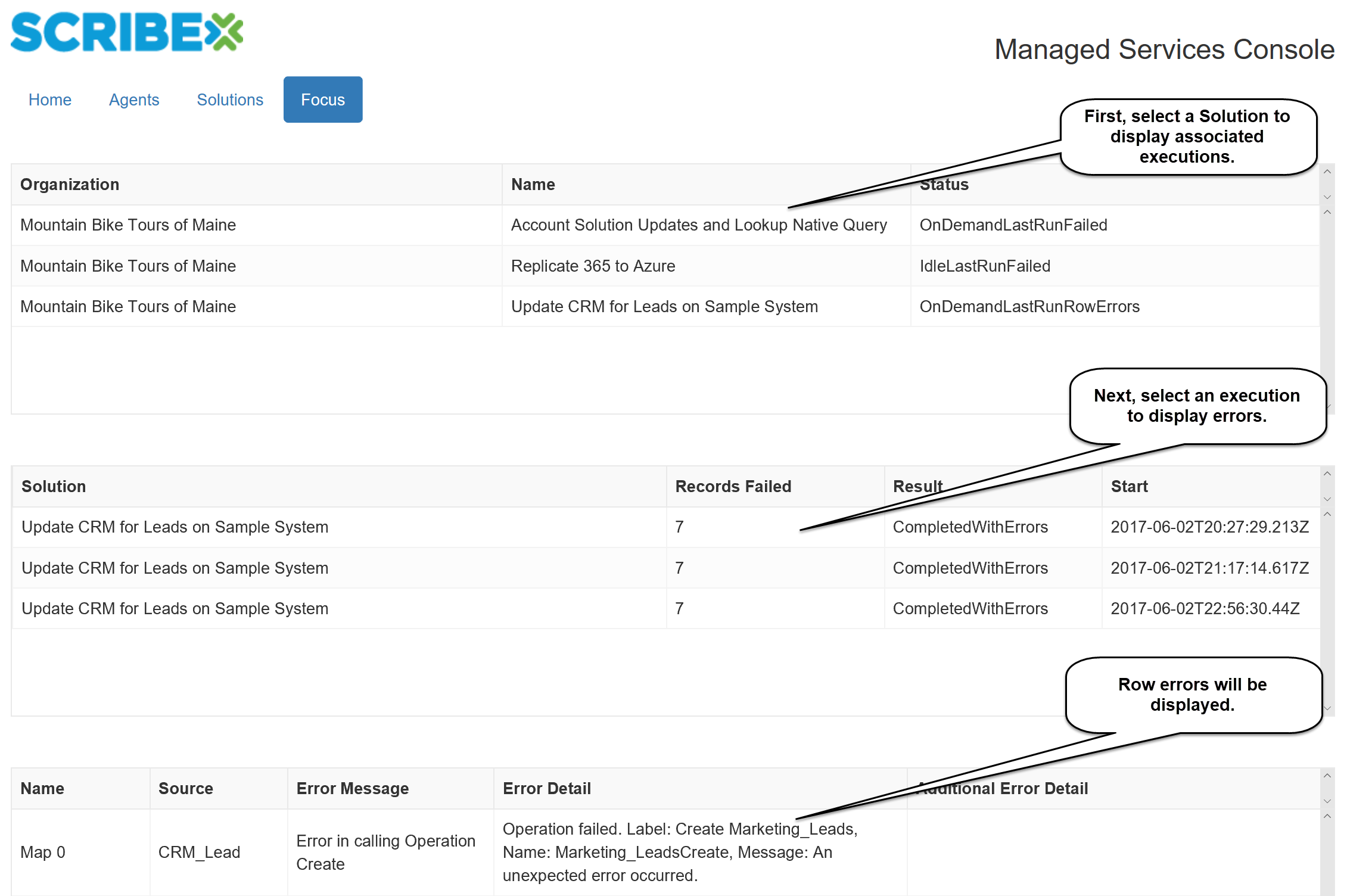

Use the Focus tab view details on all Solution Executions with errors across all of the user' Organizations where the connecting IP address is included in the range of IP addresses with API access. If all Solutions executed successfully, a Not found message is displayed.

To configure API access see Setting Security Options in the TIBCO Scribe® Help.

  • Select a Solution to display associated executions.
  • Select an execution to display errors.

Focus Tab Fields

Field

Definition

Solutions With Errors Table

Organization

Name of the Organization where the Solution is hosted.

Name

User-specified name for the Solution. Solution names can be modified in the TIBCO Scribe® UI. See Solutions.

Status

Indicates the current status of the selected Solution. Statuses include:

  • IdleLastRunFailed — The last execution of the scheduled Solution failed.
  • IdleLastRunRowErrors — The last execution of the scheduled Solution had errors.
  • OnDemandLastRunFailed — The last execution of the manually run Solution failed.
  • OnDemandLastRunRowErrors — The last execution of the manually run Solution had errors.

Solution Executions Table

Solution

Name of the executed Solution. Name repeats for each execution of the Solution selected in the Solutions With Errors Table.

Records Failed

Number of records failed for the selected Solution execution.

Results

Failed Solution execution results. Options include:

  • FatalError — An error was encountered that stopped the Solution execution.
  • CompletedWithErrors — Record errors were encountered, but the execution completed.
  • RecordErrorsandFatalErrors — Record errors were encountered, but the Solution execution stopped due to a Fatal Error.

Start

Time this execution of the Solution began.

Error Details Table

Name

Name of the Map in the selected Solution with errors.

Source

Name of the Connection to the Source datastore.

Error Message

Brief error message for the selected error.

Error Details

Detailed description of the error produced by either TIBCO Scribe® or the Connector for the data source.

Additional Error Detail

Any additional details about this error, if available.
